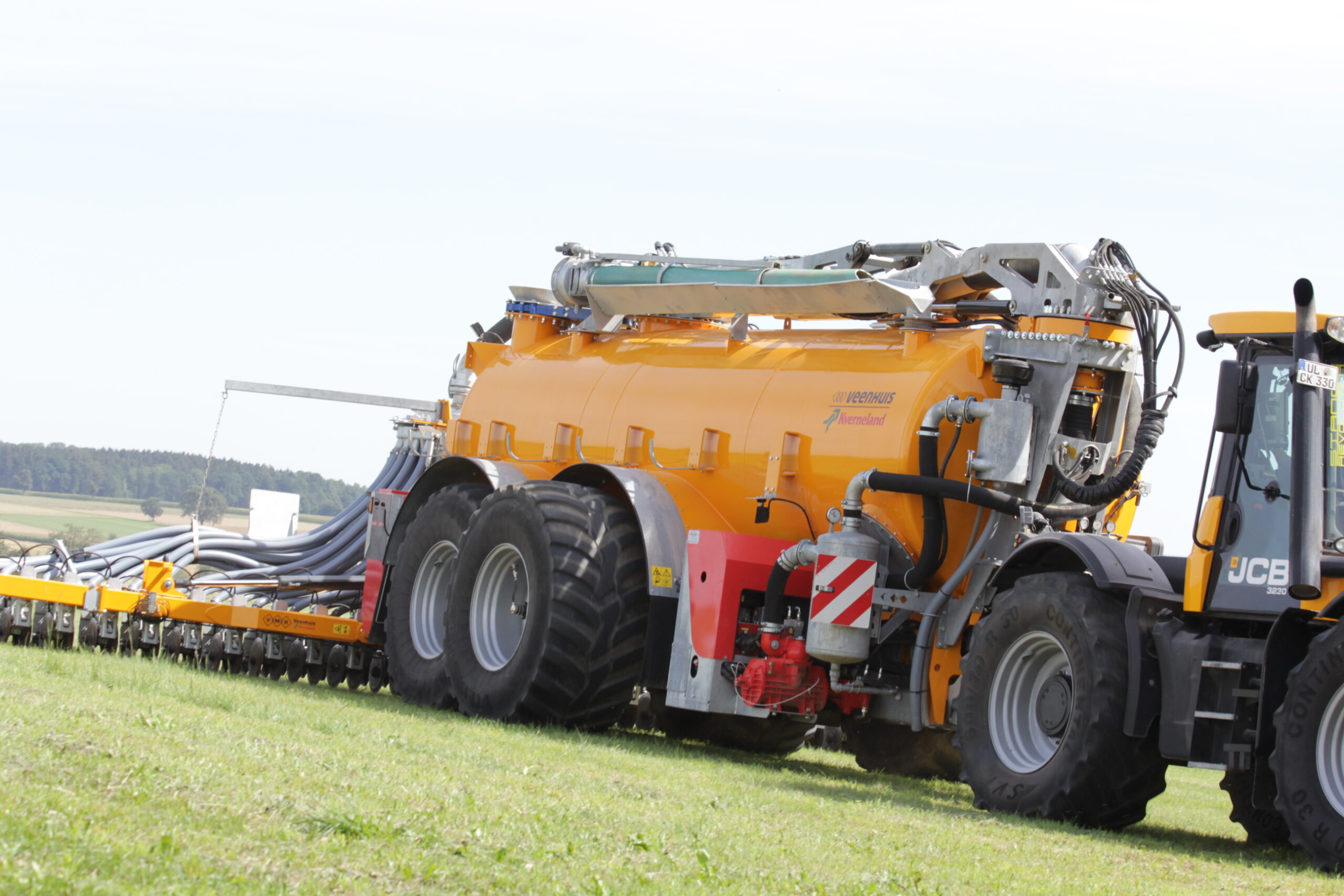

Premium Integral manure tanker
Premium Integral manure tanker

PREMIUM LINE Integral (Generation II) Tandem (14,850 – 20,000) litres Submersible pump (centrifugal)

Veenhuis Premium Integral tanks set new benchmarks in terms of efficiency, flexibility and comfort. This product line is based on technology which has proven to be effective in the Profiline segment. The main difference lies in pump technology and different suction arm versions.



The centrifugal technology installed in Integral tanks ensures outstanding performance of up to 14,000 litres per minute, making it ideal for working with large working widths. As the technology is not self-priming, it uses a combination pump technology. The combination of a vacuum system and centrifugal technology allows outstanding performance to be achieved during the filling cycle. A vacuum is applied to the entire tank, which ensures that slurry is being extracted continuously. The filling cycle is not interrupted by air bubbles. You can additionally choose between three overhead crane arms and the suction arms from the Profiline segment to cover the full range of requirements. The large, pivoting crane arms are the most flexible suction arms of their type. Left or right, from the top or bottom – with this arm you easily reach any corner. The arm can optionally also be equipped with a submersible pump. All versions ensure that the tank is filled in the shortest possible time. The design of the Integral tank maintains a low centre of gravity and thus provides reliably firm ground contact. Combined with the hydraulic suspension, this delivers high operator comfort. The tank comes with 800/60 R32 tyres and a wide steering angle as standard. This premium product features electronic controls, a powerful 4-point linkage and ISOBUS control as standard. Premium tanks come metallised, painted in yellow and protected with a clear coat of paint as standard, giving these machines the professional aesthetics they deserve.

Contact our export managers:



Download the product brochure here

    Enter your details and download the brochure directly









    View our privacy policy

    Categories: Premium slurry tanks, transporting manure, Veenhuis Machines products
    • Types
    Contents Type Diameter Cylindrical length Standard suction arm
    14850 Premium-Integral Ø 1800 mm 6,000 mm Crane arm with submersible pump
    16000 Premium-Integral Ø 1800 mm 6,500 mm Crane arm with submersible pump
    19000 Premium-Integral Ø 1900 mm 7,000 mm Crane arm with submersible pump
    20000 Premium-Integral Ø 2100 mm 6,000 mm Crane arm with submersible pump
